PTFE Gaskets offer exceptional chemical resistance and low friction, making them ideal for demanding applications. Crafted from high-quality PTFE, these gaskets withstand harsh chemicals and high temperatures while maintaining a reliable seal. Their smooth surface prevents contamination, ensuring purity in critical industries like chemical, pharmaceutical, and food processing. Designed for flexibility, they fit various flange sizes and shapes, providing a durable, low-maintenance, and cost-effective sealing solution.

X-Rings, with their distinctive star-shaped design, are engineered to surpass the capabilities of traditional O-rings by offering double the sealing surface area. This design ensures enhanced stability and significantly reduces the risk of twisting and rolling during operation. Ideal for high-pressure and high-speed environments, X-Rings provide reliable sealing under demanding conditions.

These seals are particularly effective in dynamic applications across various industries, including hydraulic systems, automotive applications, and industrial machinery where consistent performance and durability are critical. The unique four-lobed design of X-Rings allows for better pressure distribution, minimizing the potential for seal failure and making them a preferred choice for challenging sealing tasks.

X-Rings are suitable for both static and dynamic applications, offering a wide range of uses from flanges and valves to light-duty cylinders. They are an economical sealing solution for low-pressure systems and can be produced from materials like FKM to meet high-temperature or chemical resistance requirements.

Bonded Seals are also known as Dowty Seals or Dowty Bonded Washers.They are high pressure seals which are used in the Mechanical, Hydraulic and Pneumatic sectors.They comprise of a metal washer and an elastomeric ring which is bonded inside the diameter.The metal washer prevents over-compression and limits deformation of the elastomeric ring.

BS/A self-centering combination sealing gaskets are suitable for metric, imperial, BSP threaded pipe joints and screw plugs. No special processing of the sealing groove position is required. It is an ideal accessory for fast and automatic installation. The operating temperature is -30℃~100℃, and the working pressure shall not exceed 39.2MPa. Non-automatic centering combination gaskets are suitable for pipeline systems with oil as the medium, for welding, ferrules, expansion pipe joints, screw plugs and pressure system sealing of mechanical devices. To prevent leakage of oil, fuel, water and medicines, the nominal pressure is up to 40MPa and the working temperature is -25℃~+100℃.

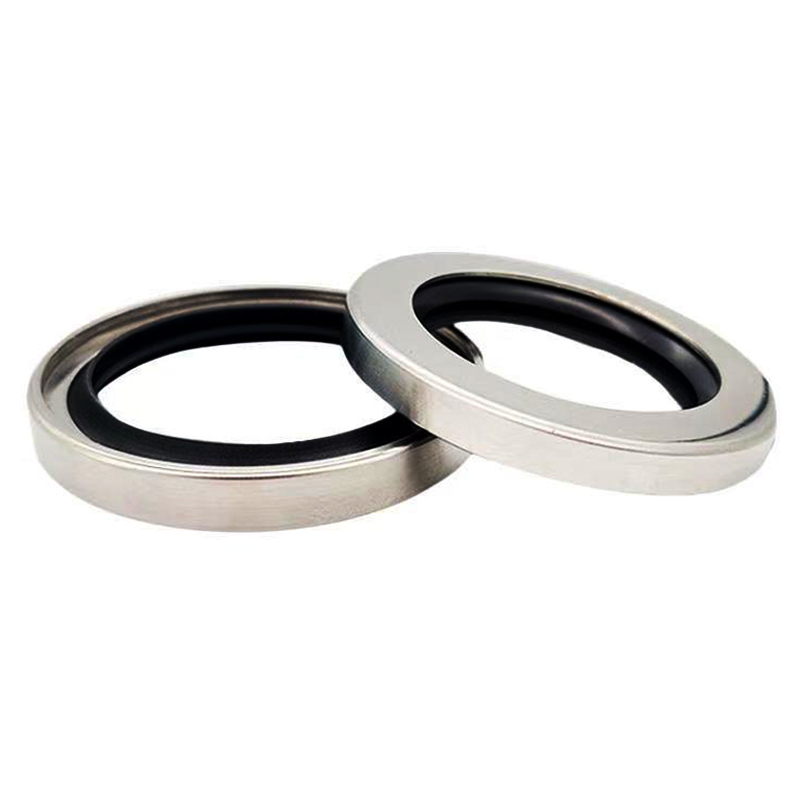

PTFE Stainless Steel Oil Seals offer a robust sealing solution with an inner wall featuring grooves that create an inward thrust, enhancing the seal's retention. Made with a top-grade PTFE material, these seals are ideal for oil-free operations, providing immediate low-friction performance post-restart. The use of high-strength, wear-resistant hardware ensures long-term durability without rust. An integrated oil return line in the design boosts sealing performance. Suitable for a variety of applications including compressors, motors, and food processing equipment, these seals are a reliable choice for harsh environments.

Perfluoroether rubber is a preferred sealing material for high-end manufacturing and extreme working conditions. Its high performance makes it perform well in demanding applications. FFKM has excellent temperature adaptability (-10℃ to 320℃) and unparalleled chemical resistance. It also has excellent resistance to gas and liquid permeation, weather resistance, ozone resistance, and self-extinguishing properties, ensuring safety and reliability under extreme conditions. Its high density and good mechanical properties further enhance the sealing effect and are suitable for scenes with explosive decompression, CIP, SIP and FDA requirements.

Application scenarios
Chemical and petrochemical industries: used for reactors, pumps and valves, resistant to highly corrosive chemicals.
Semiconductor industry: high purity and chemical resistance make it ideal for etching and cleaning processes.
Oil and gas industry: used for well seals and valves, adapting to extreme chemical and thermal conditions.
Electronics Industry: Meet the requirements of high-performance electronic products for chemical resistance and thermal stability.
Fuel Cells: Used for battery pack sealing to ensure no leakage and improve efficiency.
